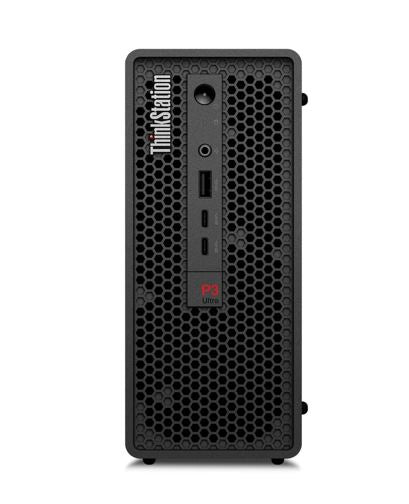

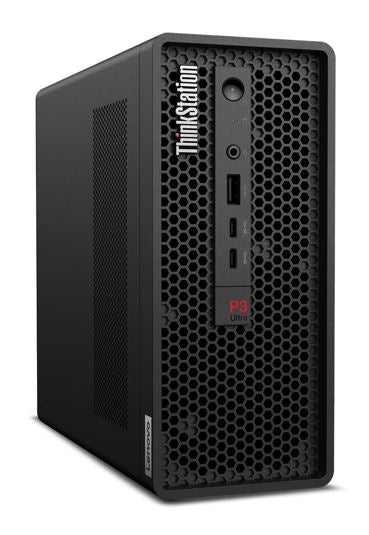

LENOVO ThinkStation P3 Ultra SFF Intel U7-265K 64GB DDR5 1TB SSD WIN 11PRO NVIDIA RTX A1000 8GB WIFI7 BT5.4 1x GbE RJ-45 3Y PRE AI Workstation Desktop
LENOVO ThinkStation P3 Ultra SFF Intel U7-265K 64GB DDR5 1TB SSD WIN 11PRO NVIDIA RTX A1000 8GB WIFI7 BT5.4 1x GbE RJ-45 3Y PRE AI Workstation Desktop
LENOVO ThinkStation P3 Ultra SFF Intel U7-265K 64GB DDR5 1TB SSD WIN 11PRO NVIDIA RTX A1000 8GB WIFI7 BT5.4 1x GbE RJ-45 3Y PRE AI Workstation Desktop
LENOVO ThinkStation P3 Ultra SFF Intel U7-265K 64GB DDR5 1TB SSD WIN 11PRO NVIDIA RTX A1000 8GB WIFI7 BT5.4 1x GbE RJ-45 3Y PRE AI Workstation Desktop
PERFORMANCE
Processor Intel Core™ Ultra 7 265K, 20C (8P + 12E) / 20T, Max Turbo up to 5.5GHz, 30MB Intel® Smart Cache
AI PC Category AI-Ready Workstations
Processor Sockets 1x FCLGA1851
Integrated Graphics Integrated Intel® Graphics
Discrete Graphics 1x NVIDIA® RTX A1000 8GB
Chipset Intel® W880 Chipset
Memory 2x 32GB SODIMM DDR5-5600 Non-ECC
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Up to 128GB (2x 64GB DDR5 CSODIMM)
PCIe NVMe Controller Integrated NVMe® controller
PCIe NVMe Drive 1x 1TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal
SATA Controller Integrated SATA controller
SATA/SAS Drive None
Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec
Power Supply 330W 90% Adapter
DESIGN
Keyboard USB, Calliope, Black, English (US)
Mouse USB Calliope Mouse, Black
Dust Filter None
Dimensions (WxDxH) 87 x 223 x 202 mm (3.43 x 8.78 x 7.95 inches)
Weight 3.6 kg (7.94 lbs, maximum configuration)
CONNECTIVITY
Onboard Ethernet Intel® I219-LM, 1x GbE RJ-45
Optional Ethernet None
WLAN + Bluetooth Intel® Wi-Fi® 7 BE200, 802.11be 2x2 + BT5.4, vPro®
Front Ports 2x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2)
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)

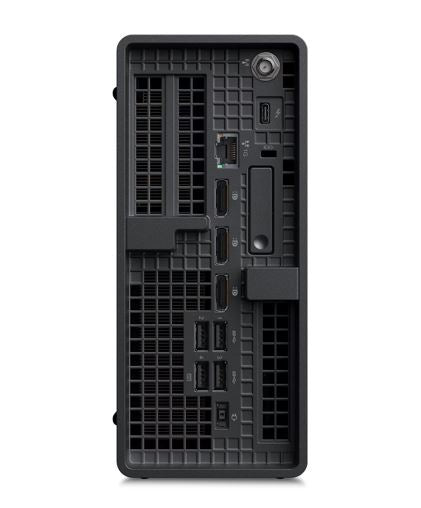

Rear Ports 4x USB-A (USB 10Gbps / USB 3.2 Gen 2)
3x DisplayPort™ 1.4
1x Ethernet (GbE RJ-45)
Optional Rear Ports (configured) None
PCIe Slots 1x PCIe® 4.0 x8 (Onboard)
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks Kensington Security Slot™, 3 x 7 mm
Chassis Intrusion Switch Chassis Intrusion Switch
MANAGEABILITY
System Management Intel® vPro® Enterprise with Intel® AMT 16
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite
CERTIFICATIONS
ISV Certifications Please visit ISV certifications for Lenovo® Workstations
Mil-Spec Test MIL-STD-810H military test passed
SOFTWARE
Operating System Windows® 11 Pro, English (US) / English (UK)
Bundled Software Lenovo® AI Now
